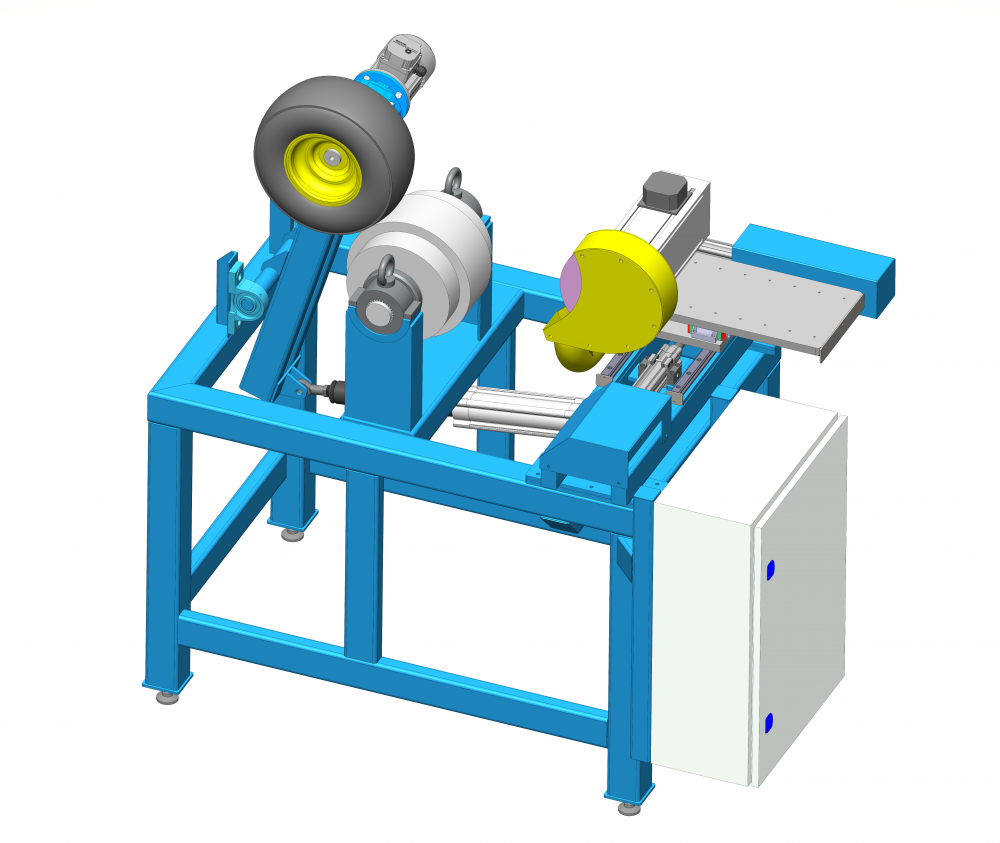

Grinding machine for pellet press roll

Technical specifications:

• Grinding width of the roll - 180 mm (other individual solutions can be offered).
• Grinding diameter of the roll- 250 - 390 mm (other individual solutions can be offered).
• Grinding thickness of the roll per cycle - 1/100 mm or 4/100 mm. The required number of cycles is adjustable.
• Total width of the unit - up to 943 mm.
• Total length of the unit - up to 1517 mm.
• Total height of the unit - up to 1567 mm.
• Total weight of the unit - 334 kg.
• Electrical connection of the unit - 380V, 50Hz, 3 phases.
